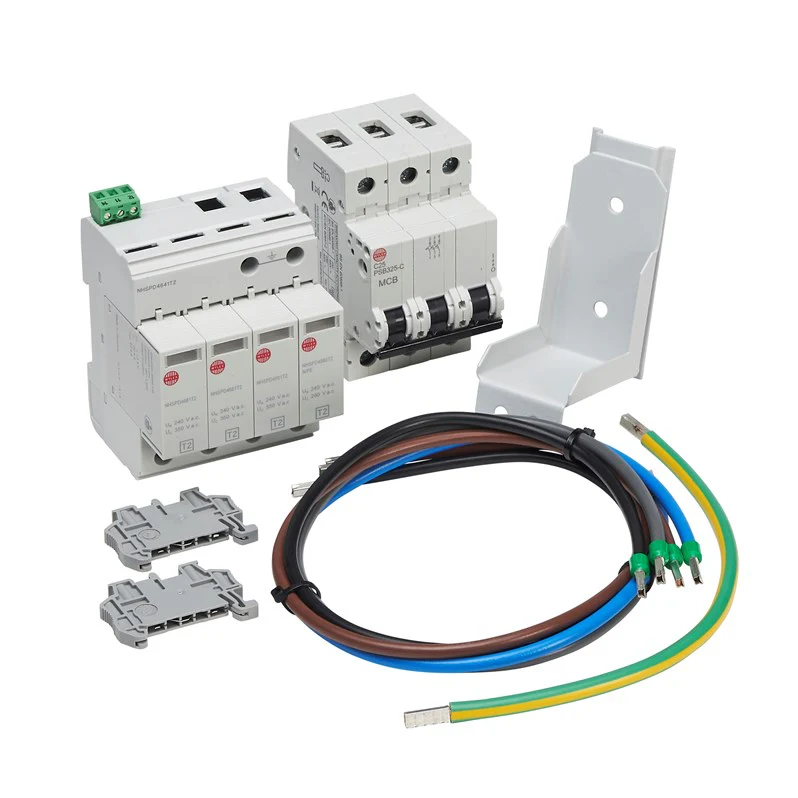

-65%Wylex NHTNSP250 250A 10kA Integral Surge Arrester Kit—
$267.89
$93.76The Story
PRODUCT INFORMATION
- Number of conductors (without earthing): 4
- Nominal discharge surge current (8/20): 20 kA
- Short-circuit breaking capacity (Isccr): 25 kA
- Max. continuous voltage AC: 350 V
- Max. discharge surge current (8/20): 40 kA
- Mounting method: DIN rail (top hat rail) 35 mm
- Construction size: 4 modular spacing
- Max. conductor cross section solid (solid, stranded): 35 mm²
- Max. conductor cross section flexible (fine-strand): 25 mm²
- Voltage protection level L-N: 1.4 kV
- Voltage protection level N-PE: 1.5 kV
- With remote signalling contact: Yes
- Integrated backup fuse: No
- Signalling at the device: Optic
- Category type 2: Yes
- Degree of protection (IP): IP20
- Product Standard/s: BS EN 61643-11
- Terminal Capacity L&N: 25 mm²
- Terminal Capacity E: 25 mm²
- Frequency: 50/60 Hz
- CE Conformity: Yes
- WEEE Symbol: Yes
- UKCA Conformity: Yes
