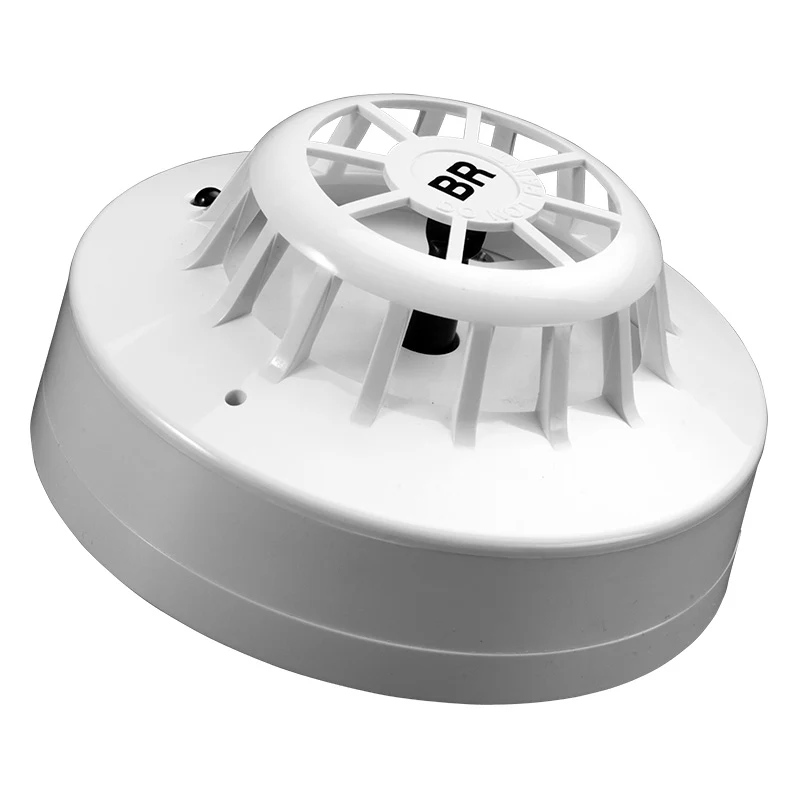

-65%C-Tec 55000-127 Apollo Series 65 BR (75ºC) Heat Detector—
$16.44
$5.75The Story
Product Description
Type BR static static or rate of rise heat detector using a dual thermistor network. This provides a voltage output proportional to the external temperature.
Product Details
| Approvals/certifications: | Certified to EN54-5 by the LPCB. |
| Application/operation: | TBC. |
| Application temperature: | 25°C typical, 65°C max. |
| Static response temperature: | 54°C min, 85°C max. |
| Supply wiring: | 2-wire monitored, polarity sensitive. |
| Supply/operating voltage: | 9 to 33V DC. |
| Quiescent current: | 45µA @ 24 VDC. |
| Alarm voltage: | 6-28V DC. |
| Alarm current: | 17mA @ 9V DC. |
| Alarm reset voltage: | TBC. |
| Expansion connections: | Remote LED output. Current sink to negative line limited to 17mA. |
| Product dimensions (mm): | 100mm diameter x 50mm deep (detector in base); 100mm diameter x 42mm deep (detector only). |
| Construction & finish: | White polycarbonate V.O in accordance with UL94. Nickel plated stainless steel terminals. |
| IP Rating: | IP23D. |
| Weight: | 80g (detector only); 131g (detector in base). |
| Operating conditions/temperature: | -20ºC to +90ºC. |
